Stainless Steel Wire Mesh

Plain Weaving Wire Mesh ,Twill Weaving Wire Mesh, Plain Dutch Weaving Wire Mesh ,Twill Dutch Weaving Wire Mesh, Stainless Steel Wire Mesh,Stainless Steel Wire Cloth,Stainless Steel Wire Netting,Stainless Steel Wire Screen

Stainless Steel Wire Mesh

stainless steel mesh 1.jpg stainless steel mesh (2).jpg



Stainless Steel Wire Mesh Definition

Less than 20mesh often called Stainless Steel Wire Screen

From 30mesh to 180mesh often called Stainless Steel Wire Mesh

More than 200Mesh often called Stainless Steel Wire Cloth



Stainless Steel Wire Mesh Processing

Stainless steel wire mesh often named square weave wire mesh, it is choice of good drawing wire at high temperature under specific conditions,The wire is woven with the weaving looms into stainless steel wire mesh at dust-free and cleaning workshops through 13 whole weaving process,(Stainless steel weaving wire can be divided into warp wire and weft wire. Warp wire is also known as line wire. Weft wire is also known as cross wire ) finished

process (1).jpg process (2).jpg


Stainless Steel Wire Mesh Application

  • Architectural & decorative industries

  • EMI & RFI shielding industries

  • Filtration & oil industries

  • Petrochemical & chemical industries

  • Battery industries

  • Food processing industries

  • Plastic & rubber extrusion industries

  • Screen printing industries

  • Fly screen & security mesh

  • Pharmaceutical industries



Stainless Steel Wire Mesh Material

SS Wire Mesh available in three different materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430



It often Export the material including AISI 304 ,316 and321

Stainless Steel Wire Chemical composition and physical properties see grade comparison Table.(PDF)



Stainless Steel Wire Mesh Weaving tape and specifications
1. Plain Weaving , Simplified as PW
plain weave.jpg

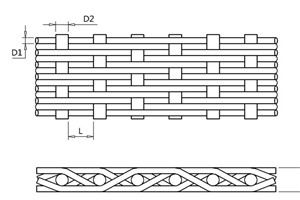

Plain weave: Each warp wire passes across the top and bottom of each weft to form a 90 degree. The warp and weft wire applied have the same diameter.

Mesh: from 3mesh to 300mesh

Wire diameter: from 1.6mm to 0.04mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 8 m

The details please check the Plain Weaving Stainless Steel Wire Mesh Specification Table.(PDF)
2.Twill Weaving, Simplified as TW

twill weave.jpg

Twill weave: Each warp wire passes across in the top and bottom of each two weft wire, each weft wire passes across each two warp wire up and down.

Mesh: from 40mesh to 635mesh

Wire diameter: from 0.3mm to 0.015mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

The details please check the Twill Weaving Stainless Steel Wire Mesh Specification Table.(PDF)
3.Dutch Plain Weaving, Simplified as DP
plain dutch weave.jpg

For plain dutch weave wire mesh,warp wire diameter is larger than weft wire ,and each warp wire passes alternately over and under each weft wire, as in normal plain weave

Mesh: from 8 x 85mesh to 100 x 800mesh

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1.0m,1.2m,1.5m

The details please check the Plain Dutch Weaving Stainless Steel Wire Mesh Specification Table.(PDF)
4.Dutch twill weaving: Simplified as DW

twill dutch weave.jpg

For twilled dutch weave wire mesh,warp wires of larger diameters are interwoven with a wider pitch than weft wire, the warp wire passes over two and under two weft wires, as in normal twilled weave, producing a very strong and firm cloth

Mesh: from 20 x 250mesh to 500 x 3500mesh

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1.0m,1.2m,1.5m

The details please check the Twilled Dutch Weaving Stainless Steel Wire Mesh Specification Table.(PDF)



Mesh: How many openings per inch ? It is called mesh, Usually the stainless steel wire mesh more than 100 mesh is called fine mesh, less than 100 mesh is called Screen mesh



How to order Stainless Steel Wire Mesh

Material eg. Grade 304

Mesh eg. 100X100 mesh

Wire Diameter eg.0.1mm

Aperture eg. 0.15mm

Length : 30meter

Width : 1 m Wide or Size requirements



Stainless Steel Mesh Packing

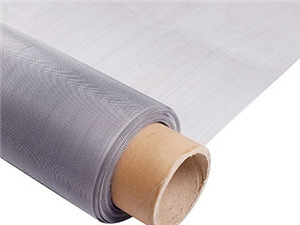

Stainless steel mesh is packed in rolls,winding on a paper tube,wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
