Conical Strainer

Conical Strainer and Cone Strainer

It is including three tapes

Cone Strainers

Temporary tape (plate strainers)

Basket Strainers

Conical Strainer Processing

Conical strainer is made of metal mesh by CNC punch pressing or cutting into sector pieces , after combination , welding flanges and handle, it is coarse filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and many models.

Conical Strainer Application

Oil And Gas Industry

HAVC Industry

Fluid Handling Industries

Protect Plant Machinery

Separators, Filtration,

Environmental Equipment And Strainers For Pipeline

Conical Strainer Material

Stainless steel Weaving mesh: 201, 202, 304, 304L, 316, 316L, 321, 430

Expanded metal: standard diamond hole, flatten diamond hole

Perforated metal : round hole

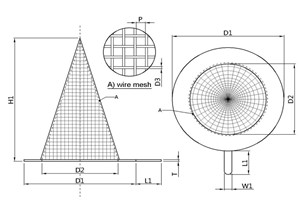

Conical Strainer Specifications

Conical Strainers

DN 3/4inch to 36inch

Length up to 130inch

The details please check the Conical Strainers Specifications Table.(PDF)

Basket Type Temporary Strainers

DN 3/4inch to 36inch

Length up to 85inch

The details please check the Basket Type Temporary Strainers Specifications Table.(PDF)

How To Order Conical Strainer

Material eg. Grade 304

DN eg. 12inch

mesh eg.16X16

Perforated eg. 1/8inch hole

Conical Strainer Packing

Conical strainer should be packed firmly and securely. When packing, conical strainer are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases
