Mesh Filter Discs

Mesh Filter Discs Shapes

Round filter discs

Oval filter discs

Circular filter disc

Square filter discs

Rectangle filter discs

Mesh Filter Disc Processing

Filter disc is made of mesh and punch die by CNC punch pressing into pieces ,usually have one layer, two layer,three layer ,the most will be get 5 layers ,after combination , spot welding, edging or sintering . The filter element can be remove impurities in the medium operating equipment to work normally,to achieve a stable process.It is widely used in the filtration process in medicine,petroleum, chemical, metallurgy, machinery, ship and chemical fiber products.

Mesh Filter Disc Material

Stainless steel mesh: 201, 202, 304, 304L, 316, 316L, 321, 430

Low carbon steel Mesh :Q235,Q295

Copper Wire Mesh & Brass Wire Mesh

Mesh Filter Disc Specification

Stamping & Cutting Filter Discs

Round Shape: diameter 15mm to 1000mm

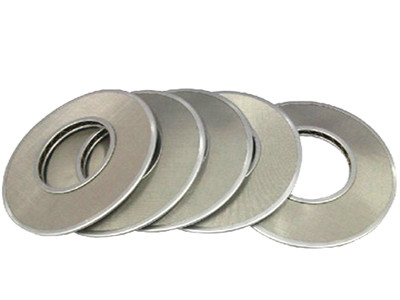

Ring Shape: size 66 x 24mm to 216 x 116mm

Rectangular Shape:size 83 x 190mm to 152 x 10000mm

Oval Shape: size 54 x 38mm to 350 x 63mm

The details please check the Stemping & Cutting Filter Discs Specifications Table.(PDF)

Rimmed Filter Packs

Round Shape: diameter 16mm to 349mm

Ring Shape: size 79 x 134mm to 178 x 254mm

Square Shape:size 51mm to 225mm

Rectangular Shape: size 42 x 118mm to 102 x 241mm

Oval Shape: size 25 x 159mm to 67 x 190mm

The details please check the Rimmed Filter Packs Specifications Table.(PDF)

Spot Welding Filter Discs

Round Shape: diameter 50mm to 276mm

Rectangular Shape: size 73x 197mm to 216 x 250mm

Oval Shape: size 50.8 x 88.9mm to 175 x 298mm

kidney Shape: 41 x 57mm to 102 x 117mm

The details please check the Spot Welding Filter Discs Specifications Table.(PDF)

SPL & DPL Filter Discs

Discs sizes : 40 mm x 20 mm to 175 mm x 90 mm

The details please check the SPL & DPL Filter Discs Specifications Table.(PDF)

Mesh Filter Disc Application

Polyester Oriental Yarn

Polyester Stable Fibers

Extruder equipment

Polypropylene Yarn

Nylon and Acrylic Yarn

BCF Polypropylene Yarn

Food process

Gas and oil filter

Boat Filtration

How To Order Mesh Filter Disc

Material eg. Grade 304

DN eg. 95mm

Layer eg.16mesh+100mesh

Al plate eg. 0.7m

Mesh Filter Discs Packing

Filter Discs should be packed firmly and securely. When packing, filter discs are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.
