Copper Wire Mesh

Copper Wire Mesh Definition

Brass wire mesh belong to non-ferrous metal alloy and containing copper and zinc.

Red copper wire mesh is made of 99.96% pure copper wire (also called pure copper mesh).

Phosphor bronze wire mesh is made of copper, zinc, tin and phosphorous.

Copper Wire Mesh Processing

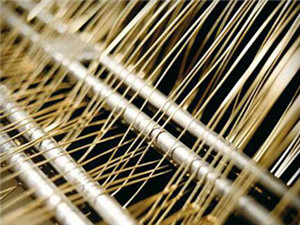

Copper wire mesh often named copper square weave wire mesh, it is choice of good copper drawing wire at high temperature under specific conditions,the wire is woven with the weaving looms into copper wire mesh at dust-free and cleaning workshops through 14 whole weaving process,(Copper weaving wire can be divided into warp wire and weft wire. Warp wire is also known as line wire. Weft wire is also known as cross wire ) finished

Copper Wire Mesh Application

• EMI & RFI shielding industry,shielded room, enclosure box, faraday cage and laboratory shielded testing

• Architectural & decorative industry

• Petrochemical & chemical industry

• Cylinder mould of papermaking

• Battery industry, as an current collectors part of fuel cells.

• Filtration and separation applications

• Fireplace screen

• Insect screens & security mesh

Copper Wire Mesh Materials

Copper Wire Mesh available in three different materials:

Brass wire including : C28000 (CuZn37) ,C27000 (CuZn35) ,C26000 (CuZn30)

Pure Copper Wire including : C11000 (99.9%), C10200 (99.95%),C10100 (99.99%)

PB Wire including : C51000 (CuSn4),C51900 (CuSn6),C52100 (CuSn6)

Copper wire chemical composition and physical properties see grade comparison table.(PDF)

Copper Wire Mesh Weaving Tape
1: Plain Weaving , Simplified as PW

Plain weave: Each warp wire passes across the top and bottom of each weft to form a 90 degree. The warp and weft wire applied have the same diameter.
2: Twill Weaving, Simplified as TW

Twill weave: Each warp wire passes across in the top and bottom of each two weft wire, each weft wire passes across each two warp wire up and down.

Copper Wire Mesh Specifications

Brass wire mesh sizes

Mesh: from 6mesh to 200mesh

Wire diameter: from 0.7mm to 0.05mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

The details please check the Brass Plain Weaving & Twilled Weaving Wire Mesh Specifications Table.(PDF)

Red copper wire mesh sizes

Mesh: from 6mesh to 180mesh

Wire diameter: from 0.7mm to 0.05mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

The details please check the Copper Plain Weaving Wire Mesh Specifications Table.(PDF)

Phosphor bronze wire mesh sizes

Mesh: from 6mesh to 400mesh

Wire diameter: from 0.7mm to 0.03mm

Roll length: standard size is 30 m long.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 2 m

The details please check the Phosphor Bronze Plain Weaving & Twilled Weaving Wire Mesh Specifications Table.(PDF)

Other definition

Wire diameter: usually unit: mm or inch. Copper weaving wire can be divided into warp wire and weft wire. Warp wire is also known as line wire. Weft wire is also known as cross wire or shute wire.

Mesh: defined as the number of openings in one square inch of a screen

For example; 60 × 60 × 0.12mm means: 60 mesh, wire diameter 0.12mm. It can also be written as: 60 × 60× AWG40 × 1m × 30m. 60 is the mesh, wire diameter AWG40, roll width: 1m, length: 30m

How to order Copper Wire Mesh

Material eg. Grade Red Copper Wire

Mesh eg. 100X100 mesh

Wire Diameter eg.0.1mm

Aperture eg. 0.15mm

Length : 30meter

Width : 1 m Wide or Size requirements

Copper wire mesh packing

Copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.
