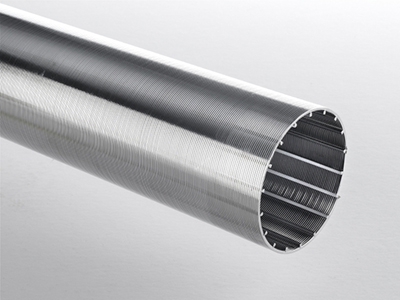

Wedge Wire Screen Tube

Wedge Wire Screen Tube Tape

wedge wire pipe well screen

Wedge wire cylinders

Wire wrapped V well screen

Wedge wire pipe with flange

Wedge Wire Screen Tube Processing

Wedge wire screen tube is made of welding V-shaped profile wire by Wrapping Cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. Support wire can be inside or outside according to flow direction ,wedge wire screen tube’s slot range from 0.2 to 5mm.

Wedge Wire Screen Tube Material

When select stainless steel grade that must endure corrosive environments, austenitic stainless steels are typically used. The most common types of stainless steel for welded wire screen are grades 304 304L 316 316L.

Wedge Wire Screen Tube Specifications

Slot size: 0.2 mm to 5 mm

Pipe diameter : 25 mm to 2500 mm

Pipe length : up to 12 m

The wire details please check the Profile Wire & Support Wire Specifications Table.(PDF)

The screen tube details please check the Wedge Wire Screen Pipe Specifications Table.(PDF)

Wedge Wire Screen for Outside to Inside Filtration Flow

Standard

External circumferential wire and axial internal support rods.

External Axial Wire (Re-Rolled)

External axial wire with internal circumferential support rods.

Cylindrical Screen for Inside to Outside Filtration Flow

Internal Axial Wire (Wire-Based)

Inverted

External circumferential inverted wire and axial internal support rods.

Internal axial wire with external circumferential support rods.

Perforated U-section channels replace the internal support rods. When the filter is used as a collector, flow is outside-in. When it is used as a distributor, flow is inside-out.

Wedge Wire Screen Tube End Types

Wedge wire screen tubes have different edge types to suit different applications, which includes,but not limit to the following

Common type

Ring type

Threaded type

Flange type

Wedge Wire Screen Tube Application

Power plants

Fish hatcheries &Desalination plants

Firefighting &Drainage channels

Potable water and Drinking water plants

Desalination plants

Water intake &water treatment

Separating,Filtering,Drying

Oil-water separation

sugar process &rotating pulping

water well production,

food and beverage,

oil and gas,

pulp and paper,

mineral and aggregate processing,

refining and petrochemical.

Benefits

V type wire, no plugged

No move part, simple to install

Low maintenance costs

Economical and applicable type, long life

Cost effective

High precision sizes

High mechanical strength, lightweight construction

Excellent filtration performance

Minimizes clogging

Maximum flow rates

Resistant to temperature variations

How to Order Wedge Wire Screen Tube

Material eg. Grade 304

DN eg. 219mm

Length eg.1000mm

Slot eg. 0.30mm

Wedge Wire Screen Tube Packing

Wedge wire screen tube is wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.

Wedge Wire Screen Tube for Water and Wastewater

Wedge Wire Screen Tube for Architectural and Decorative industry

Wedge Wire Screen Tube for Oil & Gas Well

Wedge Wire Screen Tube for Food & Beverage Processing

Wedge Wire Screen Tube for Fish Diversion

Wedge Wire Screen for Refining and Petrochemical
