Knitted Wire Mesh

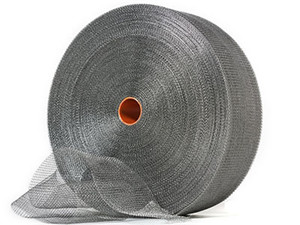

Knitted wire mesh usually it is in rolls tape. Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat),Roll length 15 m, 30 m, 50 m to 200m,Other rolls size on request

Knitted Wire Mesh Processing

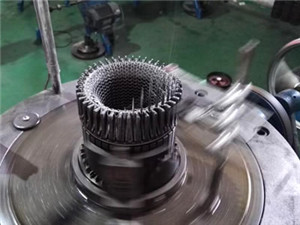

knitted wire mesh is produced by special weaving machines. Use stainless steel wire(copper ,nickel ,monel wire )as raw material, knitting monofilament or multifilament wire into a tubular form. Then the wire mesh be flattened to mesh rolls, according to clients need can be supplied in corrugated (crimped) form.

Knitted Wire Mesh Application

EMI & RFI shielding industries

Filtration & separation industries,for the screen of the demister pads,rangehood filters

Automobile industries for airbags, anti vibration and mufflers & silencers.

Medical devices

Decorative mesh

Scrubber making

Pest control

Jewelry design

Knitted Wire Mesh Benefits

Greater strength and toughness

Light weight and durable

High temperature and excellent corrosion resistant

Soft and nonmagnetic

good penetration,

flexible, good elasticity

high mechanical damping characteristics, provide ample protection from dynamic overloads

Knitted Wire Mesh available in five different materials

Stainless steel grade 302.304.304L.316,316L.321

Low carbon steel wire and galvanized wire

Copper wire

AL ,PP, Nickel and Monel 400

Knitted Wire Mesh Knitted Types

Standard type

High efficient type

High penetrated type

Single Strand & Multi-Strand Types

It is possible to knit more than one strand or filament material into a mesh product.

Multi-Filament Mesh

Simple machine-knit mesh has a single strand or filament in each knitted loop. Multi-filament mesh combines several strands of a similar material to form the loops.

Co-Knit Mesh

Co-knit mesh is similar to multi-filament mesh, but this time different materials are combined into each knitted loop.

Multi-Strand Mesh

Multi-strand mesh is similar to single-loop knitting, but in this case the knit layers are phased with different materials.

Knitted Wire Mesh Specification

Stainless Steel Knitted Wire Mesh

Opening sizes: 1x1mm to 10x10mm

Wire diameter: 0.10mm to 0.45mm

Mesh width: 3mm to 1000 mm

Mesh length: 10m to 200m

The details please check the Knitted Stainless Steel Wire Mesh Specifications Table.(PDF)

Copper Knitted Wire Mesh

Opening sizes: 2x2mm to 8x8mm

Wire diameter: 0.19mm to 0.3mm

Mesh width: 100mm to 500 mm

Mesh length: 10m to 50m

The details please check the Knitted Copper Wire Mesh Specifications Table.(PDF)

Aluminum Knitted Wire Mesh

Opening sizes: 2x2mm to 8x8mm

Wire diameter: 0.15mm to 0.3mm

Mesh width: 50mm to 500 mm

Mesh length: 10m to 100m

The details please check the Knitted Aluminum Wire Mesh Specifications Table.(PDF)

Nickel & Monel Knitted Wire Mesh

Opening sizes: 1x1mm to 8x8mm

Wire diameter: 0.1mm to 0.3mm

Mesh width: 3mm to 1000 mm

Mesh length: 10m to 200m

The details please check the Knitted Monel Wire Mesh Specifications Table.(PDF)

PP Knitted Wire Mesh

Opening sizes: 2x2mm to 8x8mm

Wire diameter: 0.15mm to 0.3mm

Mesh width: 100mm to 600 mm

Mesh length: 10m to 100m

The details please check the Knitted PP Wire Mesh Specifications Table.(PDF)

How to order Knitted Wire Mesh

Material eg. Grade 304

Hole Size eg. 4X5mm

Wire Diameter eg.0.23mm

Length : 30meter

Width : 400mm wide or size requirements

Knitted Wire Mesh Packing

Knitted wire mesh is packed in rolls or plastic spools ,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.

Knitted Wire Mesh for Demister Pads

Knitted Wire Mesh for Shielding Industries

Knitted Wire Mesh for Automobile Industries

Knitted Wire Mesh for Pest control

Knitted Wire Mesh for Decorative Industries

Knitted Wire Mesh for Rangehood Filters
