Architectural mesh is a kind of pre-crimped wire mesh, it is made of single or multiple pre-crimped wire (warp wire ) and flat top wire (weft wire), that create a structural stability metal mesh, the mesh is widely used in indoor and outdoor applications.

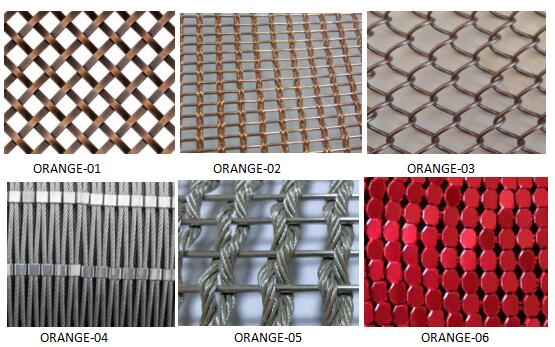

Architectural Wire Mesh Application

Shower curtain

Space divider

Conceal doorways

Wall decoration

Lamp shade

Fireplace screen

Door curtain

Building facade

Handrail infill screens,

ceilings

partitions

lighting effect

interior design

shopfitting

Architectural Wire Mesh available in three different materials:

Stainless steel: 201,202, 304, 316, 321

Copper: brass, pure copper, phosphor bronze

Aluminum & aluminum alloy: 1050, 1060, 1100, 5052, 5056

Other material is also available upon request

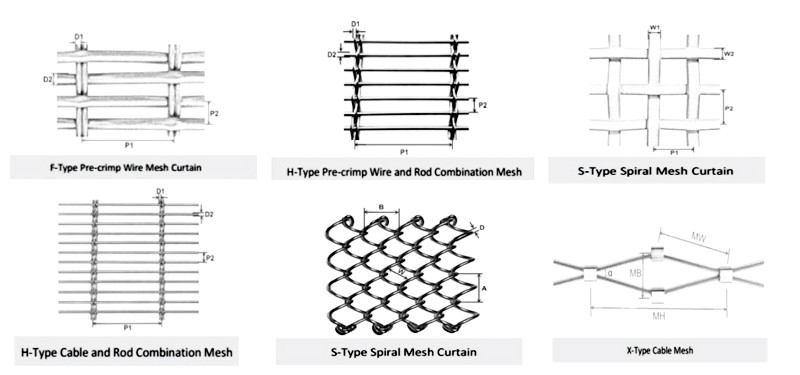

Architectural Wire Mesh Specifications

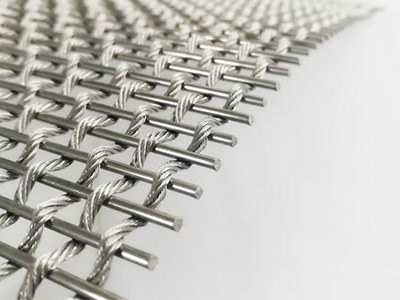

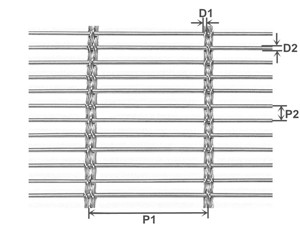

Cable and Rod Combination Mesh

Opening sizes : 2 mm x 1 mm to 100 mm x 10 mm

Cable diameters: 0.45 mm to 3 mm

Rod diameters: 0.5 mm to 4 mm

Roll length: standard size is 10 m in length.

Roll width 0.9 m, 1 m, 1.2 m, 1.5 m to 8 m

Other sizes is also available upon request.

The details please check the Cable and Rod Combination Mesh Specifications Table.(PDF)

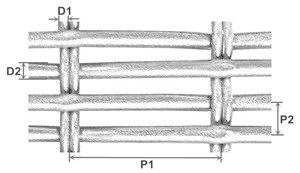

Pre-crimp Wire Mesh

Opening sizes : 4 mm x 2 mm to 50 mm x 50 mm

Pre-crimped wire diameters : 1.0 mm to 4.0 mm

Flat top wire diameters : 0.8 mm to 4.0 mm

Panel width: 0.6 m, 0.9 m, 1.0 m to 1.5 m

Panel length : 0.6 m, 1 m, 1.5 m to 8 m

Other sizes is also available upon request.

The details please check the Pre-crimp Wire Mesh Curtain Specifications Table.(PDF)

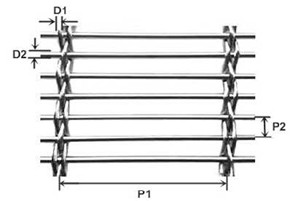

Pre-crimp Wire and Rod Mesh

Opening sizes : 23 mm x 2 mm to 120 mm x 10 mm

Pre-crimped wire diameters : 0.75 mm to 3 mm

Rod diameters : 1.5mm to 4 mm

Roll length: standard size is 10 m in length.

Roll width: 0.9 m, 1 m, 1.2 m, 1.5 m to 8 m

The details please check the Pre-crimp Wire and Rod Mesh Specifications Table.(PDF)

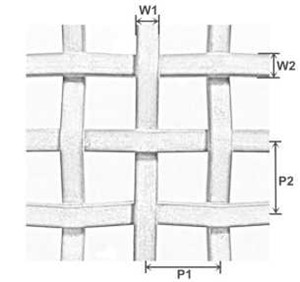

Flat Wire Decorative Metal Mesh

Opening sizes : 2 mm to 35 mm

Flat wire sizes : 1 mm x 0.5 mm to 8.0 mm x 2.0 mm

Panel width: 0.6 m, 0.9 m, 1.0 m to 1.5 m

Panel length : 0.6 m, 1 m, 1.5 m to 8 m

Other sizes is also available upon request.

The details please check the Flat Wire Decorative Metal Mesh Specifications Table.(PDF)

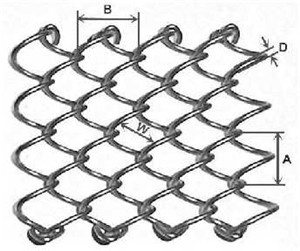

Coil Drapery Mesh

Opening sizes (spiral distance): 3 mm to 18 mm

Wire diameters : 0.8 mm to 3.0 mm

Roll width: 1 m, 1.5 m, 2 m to 6 m

Roll length (height of curtain): 0.6 m, 1 m, 1.5 m to 3 m

Other sizes is also available upon request.

The details please check the Coil Drapery Mesh Specifications Table.(PDF)

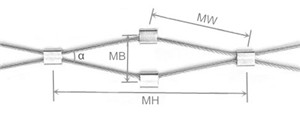

X Tend Cable Mesh

Diamond opening sizes: 25 mm to 200 mm

Cable diameters : 1.0 mm to 4.0 mm

Roll width 0.2 m, 0.6 m, 1 m, 1.5 m to 3 m

Roll length 1 m, 2 m to 30 m

Other sizes is also available upon request.

The details please check the X Tend Cable Mesh Specifications Table.(PDF)

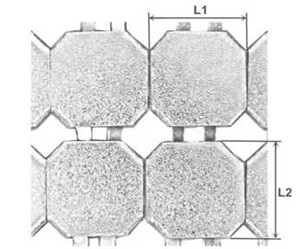

Metallic Curtain Fabric

Flake sizes : 3 mm to 10 mm

Roll length: standard size is 10 m in length.

Roll width: 0.914 m, 1 m, 1.22 m, 1.5 m to 8 m

Other sizes is also available upon request.

The details please check the Metallic Curtain Fabric Specifications Table.(PDF)

Architectural Wire Mesh Benefits

Light weight, stable and strong

High security and safety

Allows ample light and airflow

Transparent and flexible

Innovative and durable

For interior and exterior use

Sustainability and recycling

How to order Architectural Wire Mesh

Material eg. Grade 304

Cable eg.2mm

Length : 30meter

Width : 1 m Wide or Size requirements

Architectural Wire Mesh Packing

Architectural wire mesh is packed in rolls,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
