Crimped Wire Mesh

Crimped Wire Mesh Definition

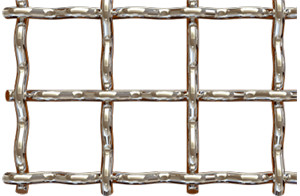

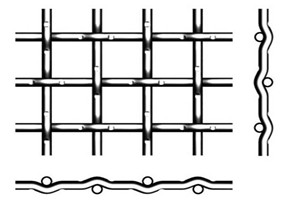

Plain crimp weave it is a simple style of crimping in which warp wire and weft wire intersect at every crimps or corrugations

Intercrimp weave it is a type of pre-crimp weaving that warp wire and weft wires intersection occur at the points of every odd number

The flat top crimp The wire is same to lock crimp weaving, the difference is all of its crimps or corrugations is offset to the bottom side of screen

Lock crimp weave the warp wire and weft wire is crimping at the points of intersection and have clearing bumps, while the wires on a lock crimp are straight between intersections.

Slot hole crimped it is a specialty style hat the warp wire and weft wire are precrimped by different weaving process , that create a rectangular hole and ensure maximum open areas

Crimped Wire Mesh Processing

The crimped wire mesh is woven using wire crimped prior to weaving. The crimps are made at the points the shute and warp wires intersect which secures the wire, thereby stabilizing the wire cloth and preventing the wire from moving. Additional rigidity and strength can be obtained by adding crimps. Crimped wire provides a more secure fit to the mesh, limiting movement of the space cloth. This results in more accurate and consistent opening sizes within the mesh.

Crimped Wire Mesh Application

Mining & aggregate industries,vibrating machine

Architectural & decorative industries

Agricultural & food industries

Wire Mesh grill of Car

Separation industry for test sieves

Security industry for fence

Zoo caging applications

Crimped Wire Mesh Benefits

Versatile,economical

Lightweight

Largest selection of woven specifications

Unlimited capability

Various openings and wire diameters available

Crimped Wire Mesh Materials

Carbon/plain steel: low carbon steel, mild carbon steel, high carbon steel

Stainless steel: 201,202, 304, 316, 316L,321, 430

Copper: brass, pure copper, phosphor bronze

Aluminum: 1050, 1060, 1100, 5052, 5056

Crimped Wire Mesh Specifications

Plain crimped wire mesh

Wire diameter 0.5mm to 12.7mm

Opening size 1mm to 100mm

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

The details please check the Plain Pre-Crimped Wire Mesh Specifications Table.(PDF)

Intercrimp wire mesh

Wire diameter 0.6mm to 5.8mm

Opening size 5mm to 100mm

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

The details please check the Intermediate Pre-Crimped Wire Mesh Specifications Table.(PDF)

Flat top crimped wire mesh

Wire diameter 1.6mm to 5mm

Opening size 4mm to 60mm

Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

The details please check the Flat Top Pre-crimped Wire Mesh Specifications Table.(PDF)

Lock crimped wire mesh

Wire diameter 0.8mm to 4.8mm

Opening size 4mm to 100mm

Panel width: 0.5 m, 0.914 m, 1 m, 1.22 m to 2 m

Panel length: 1 m, 1.22 m, 1.5 m to 6 m

The details please check the Lock Pre-Crimped Wire Mesh Specifications Table.(PDF)

Slot hole crimped wire mesh

Wire diameter 0.8mm to 5mm

Opening size 1x4mm to 10x50mm

Roll width 1 m, 1.22 m, 1.5 m to 4 m

Roll length 15 m, 30 m to 60 m

The details please check the Slot Hole Pre-Crimped Wire Mesh Specifications Table.(PDF)

How to order crimped wire mesh

Material eg. AISI304

Opening eg. 3.5mm

Wire Diameter eg.1.0mm

Length : 30meter

Width : 1 m Wide or Size requirements

Crimped Wire Mesh Packing

Crimped wire mesh is packed in sheets & rolls, and waterproof paper or plastic film wrapped, outside is wooden cases or wooden pallet

Crimped Wire Mesh for Vibrating Screen & Quarrying Screen

Crimped Wire Mesh for Mine & Coal

Crimped Wire Mesh for Food

Crimped Wire Mesh for Architecture

Crimped wire mesh for Car

Crimped Wire Mesh for Zoo Enclosure
