Wedge Wire Screen Panel

Wedge Wire Screen Panel

Square wire screen Panel

Rectangle Wire Screen Panel

Round wire screen Panel

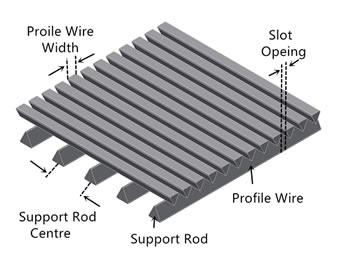

Wedge Wire Screen Panel Product Specification

Material: AISI 304, 316 stainless steel

Slot opening: from 0.2 mm.

Spacing between support rods: 20,25, 50, 75, 100, 300 mm (or on request).

Length: 500 mm to 2800 mm.

Width: 1000 mm to 3000 mm.

The details please check the Flat Panel Welded Wedge Wire Screen Specifications Table.(PDF)

Wedge Wire Screen Panel Processing

Flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. Support bar will be flat bar ,round bar ,triangle wire and so on,slot size range from 0.2mm to 3mm

Wedge wire screen panel 3D model

Wedge Wire Screen Panel Application

municipal areas and industries

interior wall cladding and facades

Used in modern buildings

Ceiling panels

Drainage system of showers

Vibrating screen decking

Coal mining

Waste water treatment

Mineral processing

Aggregate industry

Wedge Wire Screen Panel Benefits

Self-cleaning

Reduced maintenance time and costs

Simple and inexpensive to install

Vee type profile wires prevent plugging

Corrosion resistant stainless steel construction

Avoiding erosion damage and blockage to pipes and machinery

Wedge wire screen flat panel photo

Ourun-001                                                                               Ourun-002

Wedge wire screen flat panel with Frame

  Ourun-003                                                                                  Ourun-004

Wedge wire screen with round disc -Lauter Tun Screen of support grid

    Ourun-005                                                                                 Ourun-006

Wedge Wire Screen Panel Packing

Wedge wire screen is packed wrapped in moisture proof paper or plastic film, outside wooden cases or wooden pallet.

How to order the wedge wire screen panel

Material eg. Grade 304

Width eg. 1000mm

Length eg.2000mm

Slot eg. 0.50mm

Wedge Wire Screen Panel for Coal Processing

Wedge Wire Screen Panel for interior wall cladding and facades

Wedge Wire Screen Panel for Vibrating screen decking

Wedge Wire Screen Panel for Waste water treatment

Wedge Wire Screen Panel for Aggregate industry

Wedge Wire Screen Panel for food industry
